Solomon 3D Scanner工业用高精度3D结构光扫描器
Solomon 3D Scanner 采用结构光技术进行三维扫描，实现高质量、高精度的点云生成能力。
为系统集成商、设备商和工业终端客户提供了一个完美的硬件来轻松定制3D应用程序。
Solomon 3D Scanner -产品优势
产品用途

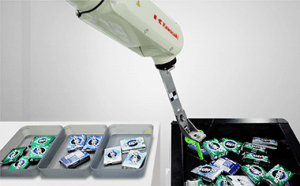

物件辨识和分类

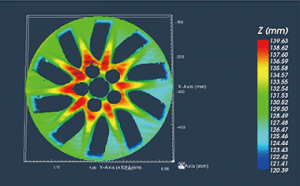

尺寸量测

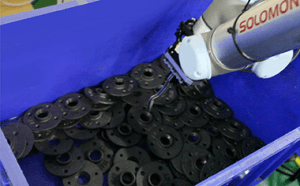

三维物件取放

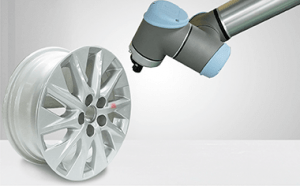

机器人自动路径导引

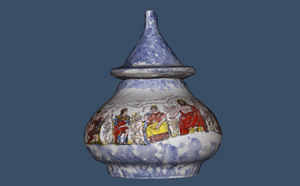

3D物件扫描
VR/AR 3D
规格表
| Module Name | SLM 3DSCN-0231C |
|---|---|
| Pixels | 2.3 M |
| Camera Resolution | 1920 x 1200 |
| Field of View ★★ | 231 x 178 ~ 1033 x 778 mm |
| Working Distance★★ | 450 ~ 2000 mm |
| Spatial Resolution | 0.24 ~ 1.07 mm |
| Scanning Time | Minimum : 0.3 Sec |
| Scanning Technology | Structured Light Projection |
| Projector Light Source | LED |
| Interface | USB 3.0 |
| Dimensions | 363 x 202 x 120 mm (L-W-H) |
| Power | AC 100 ~ 240 V / 50 ~ 60 Hz |
| Weight | 3 kg |
| Operating Temperature | 0 – 40 C |
★★Optional
★ The product is not applicable to the transparent objects or objects with over 50% light reflection rate.
| Module Name | SLM 3DSCN-0231C |
|---|---|
| Pixels | 5 M |
| Camera Resolution | 2590 x 2048 |
| Field of View ★★ | 310 x 269 ~ 1202 x 1120 mm |
| Working Distance ★★ | 450 ~ 2000 mm |
| Spatial Resolution | 0.24 ~ 1.08 mm |
| Scanning Time | Minimum : 0.8 Sec |
| Scanning Technology | Structured Light Projection |
| Projector Light Source | LED |
| Interface | USB 3.0 |
| Dimensions | 363 x 202 x 120 mm (L-W-H) |
| Power | AC 100 ~ 240 V / 50 ~ 60 Hz |
| Weight | 3 kg |
| Operating Temperature | 0 – 40 C |
★★ Optional
★ The product is not applicable to the transparent objects or objects with over 50% light reflection rate.
Solomon 3D Scanner
了解Solomon 3D Scanner 产品
