SolScanกล้อง 3D อุตสาหกรรม

ฮาร์ดแวร์ระบบอัตโนมัติในอุตสาหกรรม

SolScan คำอธิบายสินค้า

SolScan เป็นกล้อง 3D อุตสาหกรรมขั้นสูงที่ออกแบบมาอย่างพิถีพิถันสำหรับโครงการ AI และวิสัยทัศน์ 3D ด้วยการใช้เทคโนโลยีแสงที่มีโครงสร้าง SolScan มอบความยืดหยุ่นที่ยอดเยี่ยม ทำให้เป็นเครื่องมือที่มีค่าสำหรับผู้ใช้ที่ต้องการพัฒนาแอปพลิเคชันวิสัยทัศน์ 3D

การใช้งาน SolScan เปิดโอกาสให้กับหลากหลายความเป็นไปได้ รวมถึงการรู้จำและการจัดประเภทวัตถุ การวัดอย่างแม่นยำ การเลือกวัตถุจากถัง การแนะนำหุ่นยนต์ การสแกนวัตถุอย่างแม่นยำ และการสร้างโมเดล 3D สำหรับความเป็นจริงเสมือน (VR) และความเป็นจริงเสริม (AR)

สิ่งที่ทำให้ SolScan แตกต่างจากกล้อง 3D อุตสาหกรรมอื่นๆ คือ ประสิทธิภาพที่ยอดเยี่ยมและตัวเลือกในการปรับแต่ง ด้วย SolScan ผู้ใช้สามารถปรับแอปพลิเคชัน 3D ให้ตรงกับความต้องการเฉพาะของตน ทำให้ SolScan เป็นตัวเลือกที่เหมาะสมสำหรับผู้รวบรวมระบบ ผู้สร้างเครื่องจักร และผู้ใช้งานปลายทาง

SolScan industrial 3D camera cover with Solomon logo in red

SolScan คุณสมบัติของ

! Font Awesome Pro 6.4.0 by @fontawesome – https://fontawesome.com License – https://fontawesome.com/license (Commercial License) Copyright 2023 Fonticons, Inc.

การสแกนที่รวดเร็ว

SolScan ใช้การกำหนดค่าแกนหกแกน (x, y, z, Rx, Ry, Rz) เพื่อทำกระบวนการสแกนให้เสร็จสิ้นในประมาณ 1.5 วินาที โดยผลิตจุดข้อมูลที่แม่นยำและมีคุณภาพสูง

! Font Awesome Pro 6.4.0 by @fontawesome – https://fontawesome.com License – https://fontawesome.com/license (Commercial License) Copyright 2023 Fonticons, Inc.

ฟังก์ชันสี

SolScan มาพร้อมกับกล้อง RGB คุณภาพสูงที่ทำให้สามารถพัฒนาแอปพลิเคชันที่สำคัญสำหรับการจัดการความแตกต่างของสีได้อย่างมีประสิทธิภาพ

! Font Awesome Pro 6.4.0 by @fontawesome – https://fontawesome.com License – https://fontawesome.com/license (Commercial License) Copyright 2023 Fonticons, Inc.

รองรับ ROS

จุดข้อมูลที่ได้จะถูกส่งไปยังระบบปฏิบัติการหุ่นยนต์ (ROS) เพื่อการพัฒนาแอปพลิเคชันภายในระบบ

! Font Awesome Pro 6.4.0 by @fontawesome – https://fontawesome.com License – https://fontawesome.com/license (Commercial License) Copyright 2023 Fonticons, Inc.

กล้องคู่

มีกล้อง 2D ในตัวสองตัวที่ทำงานร่วมกันเพื่อตรวจสอบข้อผิดพลาดที่อาจเกิดจากวัตถุที่ทับซ้อน

! Font Awesome Pro 6.4.0 by @fontawesome – https://fontawesome.com License – https://fontawesome.com/license (Commercial License) Copyright 2023 Fonticons, Inc.

GUI ที่ใช้งานง่าย

SolScan มาพร้อมกับ GUI ที่ใช้งานง่าย ซึ่งช่วยให้งานการส่งออกจุดข้อมูล (point cloud) เป็นไปได้ง่ายขึ้น

! Font Awesome Pro 6.4.0 by @fontawesome – https://fontawesome.com License – https://fontawesome.com/license (Commercial License) Copyright 2023 Fonticons, Inc.

อินเตอร์เฟซ 3D GenICam

SolScan รองรับอินเตอร์เฟซ 3D GenICam ซึ่งช่วยให้ผู้ใช้สามารถทำงานกับแพลตฟอร์มซอฟต์แวร์ 3D เช่น Halcon, Common Vision Blox (CVB) และแอปพลิเคชันที่รองรับอื่นๆ ได้อย่างมีประสิทธิภาพ

SolScan แอปพลิเคชันของ

robot arm classifying and sorting packets of chewing gum

การรู้จำและการจัดประเภทวัตถุ

3D measurement of a car alloy wheel using AI

การวัด

black metal objects are picking from a blue bin using a UR robot arm

การเลือกวัตถุจากถัง (Bin Picking)

car alloy wheel and a UR robot arm

การแนะนำหุ่นยนต์ (Robot Guiding)

3D rendering of a ceramic vase

การสแกนวัตถุ

3D rendering of a pair of blue sneakers

การสร้างโมเดล 3D สำหรับ VR/AR

SolScan วิดีโอของ

Video Player is loading.
Current Time 0:00
Loaded: 0%
Duration 0:00

  • captions off, selected
    1x

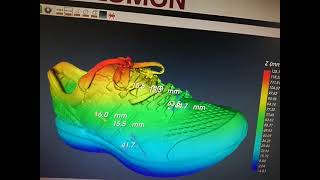

    การสแกนและการวัดวัตถุ

    SolScan สแกนภาพรองเท้าและเชื่อมภาพเหล่านั้นเข้าด้วยกันเพื่อสร้างโมเดล 3D จุดข้อมูลที่ได้สามารถใช้ในการวัดมิติหรือระยะจุดต่อลูกได้

    Video Player is loading.
    Current Time 0:00
    Loaded: 0%
    Duration 0:00

    • captions off, selected
      1x

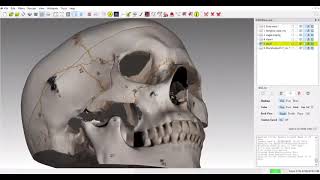

      การสร้างโมเดล 3D

      SolScan สามารถสร้างภาพ 3D ด้วยความแม่นยำสูง ในวิดีโอนี้, วัตถุและสิ่งของถูกวางบนแผ่นหมุนและสแกนโดยใช้ SolScan โดยจุดข้อมูลจากภาพหลายๆ ภาพให้การวัดที่แม่นยำ (ใกล้เคียง 0.1 มม.) ส่งผลให้ได้ภาพ 3D ที่ชัดเจนของวัตถุที่สแกน

      Video Player is loading.
      Current Time 0:00
      Loaded: 0%
      Duration 0:00

      • captions off, selected
        1x

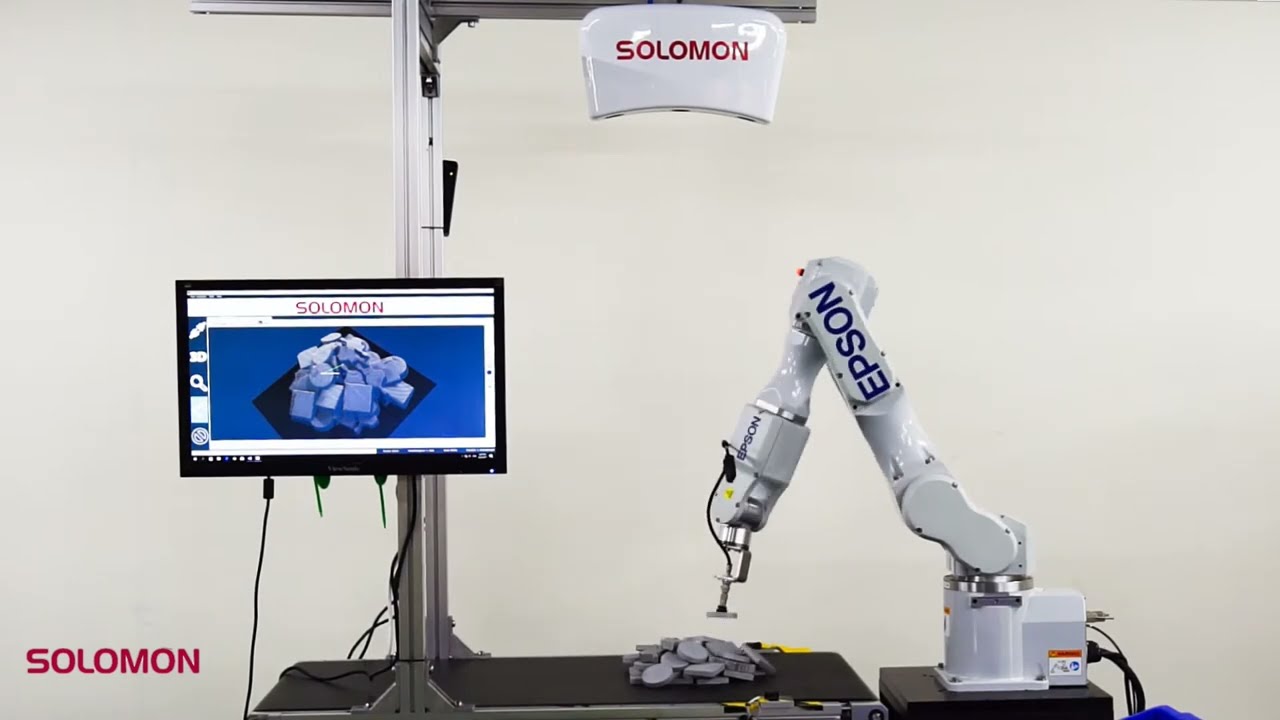

        การเลือกวัตถุจากถัง (Bin Picking)

        เทคโนโลยีการสแกน 3D ของ SolScan สามารถจับข้อมูลรายละเอียด และอัลกอริธึมอัจฉริยะของ AccuPick 3D วิเคราะห์ข้อมูลเพื่อหาตำแหน่งที่แม่นยำและการรู้จำวัตถุที่เชื่อถือได้

        SolScan สเปค

        Pixels2.3 M
        Camera Resolution1920 x 1200
        Field of View**285 x 195–1050 x 810 mm
        Working Distance**450–2000 mm
        Spatial Resolution*0.24–2.6 mm
        Scanning TimeMinimum: 0.3 sec
        Scanning TechnologyStructured Light Projection
        Projector Light SourceLED
        InterfaceUSB 3.0
        Dimensions363 x 202 x 120 mm (L-W-H)
        PowerAC 100–240 V / 50–60 Hz
        Weight3 kg
        Operating Temperature0–40°C
        *Optional
        **Not applicable to transparent objects or objects with over 50% light reflection rate
        Limited Warranty Statement
        Pixels5 M
        Camera Resolution2590 x 2048
        Field of View**295 x 220–1230 x 950 mm
        Working Distance**450–2000 mm
        Spatial Resolution*0.15–1.8 mm
        Scanning TimeMinimum: 0.8 sec
        Scanning TechnologyStructured Light Projection
        Projector Light SourceLED
        InterfaceUSB 3.0
        Dimensions363 x 202 x 120 mm (L-W-H)
        PowerAC 100–240 V / 50–60 Hz
        Weight3 kg
        Operating Temperature0–40°C
        *Optional
        **Not applicable to transparent objects or objects with over 50% light reflection rate
